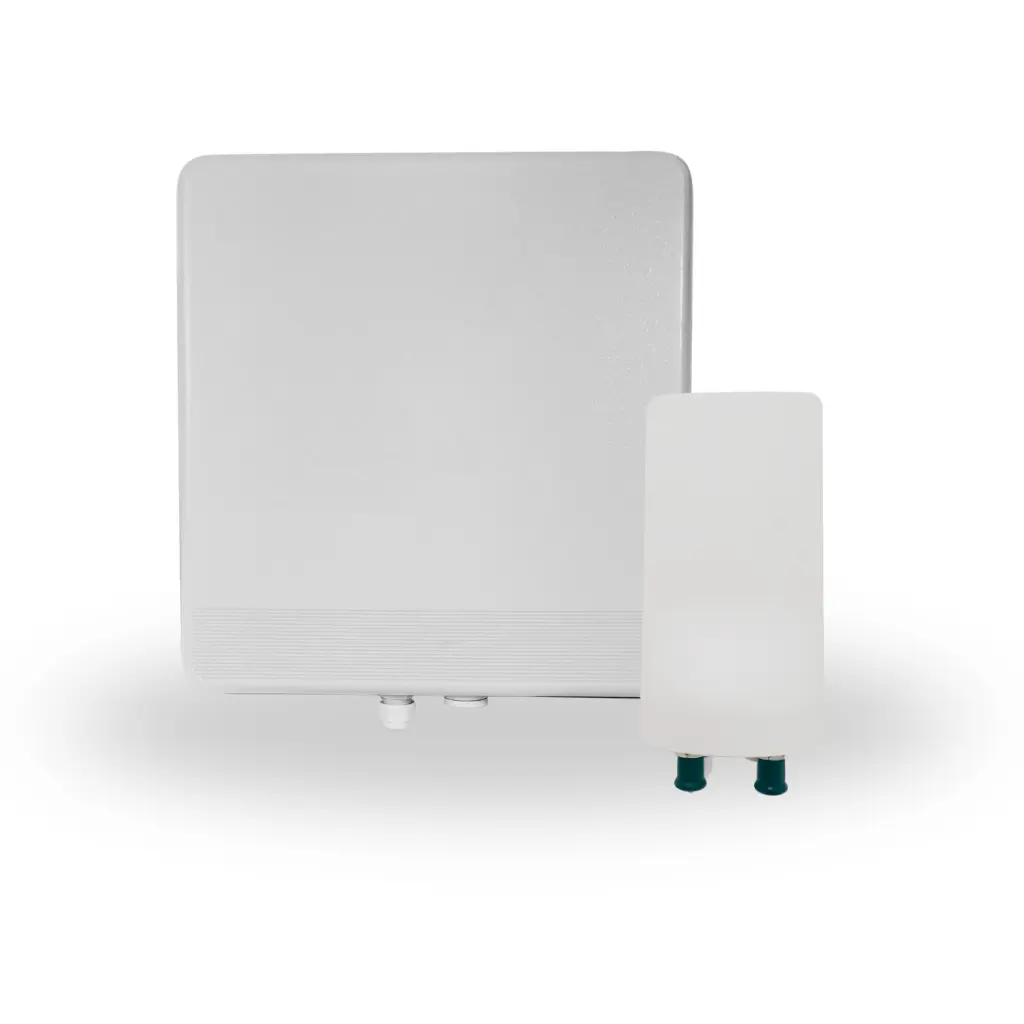

RADWIN 2000 E
Ultra-Capacity Point-to-Point Radio | Sub-6 GHz | Up to 2.5 Gbps
RADWIN 2000 E is a high-performance Point-to-Point (PtP) outdoor radio built to deliver ultra-high capacity and resilient performance in mission-critical and backhaul applications. Operating in the 4.9 GHz – 7.1 GHz band, it delivers up to 2.5 Gbps using 160 MHz channel bandwidth and maintains robust performance even in congested environments.
Equipped with a built-in GPS for TDD synchronization, the 2000 E enables effective radio colocation and link coordination. Available as either an integrated or connectorized unit, it features AES 256 encryption, dynamic channel switching, dynamic bandwidth control, and outstanding packet switching power, making it the go-to solution for long-range, interference-prone deployments.
- Operates in the 4.9 GHz–7.1 GHz band
- Up to 2.5 Gbps @ 160 MHz | 1.2 Gbps @ 80 MHz
- Range: up to 120 km / 75 miles
- 4096 QAM for spectral efficiency up to 15.6 bps/Hz
- Dynamic bandwidth selection: 20 / 40 / 80 / 160 MHz
- Connectorized or integrated antenna options
- Built-in GPS for radio collocation and sync
- More than 700K PPS switching power
- AES 256-bit encryption for secure transmission
- 2.5 GbE PoE and 1 Gbps full-duplex SFP port
- IP67-compliant for harsh outdoor environments
Main values
Unbeatable capacity for
mission-critical links
Supports up to 2.5 Gbps throughput at 160 MHz and 1.2 Gbps at 80 MHz, ideal for video backhaul, transport, or enterprise connectivity.
Optimized for radio
colocation
Built-in GPS enables hub sites to host multiple radios with minimal interference, maximizing tower efficiency.
Secure and encrypted
data transmission
AES 256 encryption
ensures industry-grade data protection for public safety, industrial, or
government applications.
Advanced interference
mitigation
Very low sidelobe design (22 dB down) and dynamic channel bandwidth selection deliver stable performance in noisy environments.
High-performance packet handling
700K PPS ensures maximum
throughput, even when handling high volumes of small packets typical in voice
or control data.
Built to withstand the elements
IP67-certified for outdoor reliability in extreme weather and remote locations.
