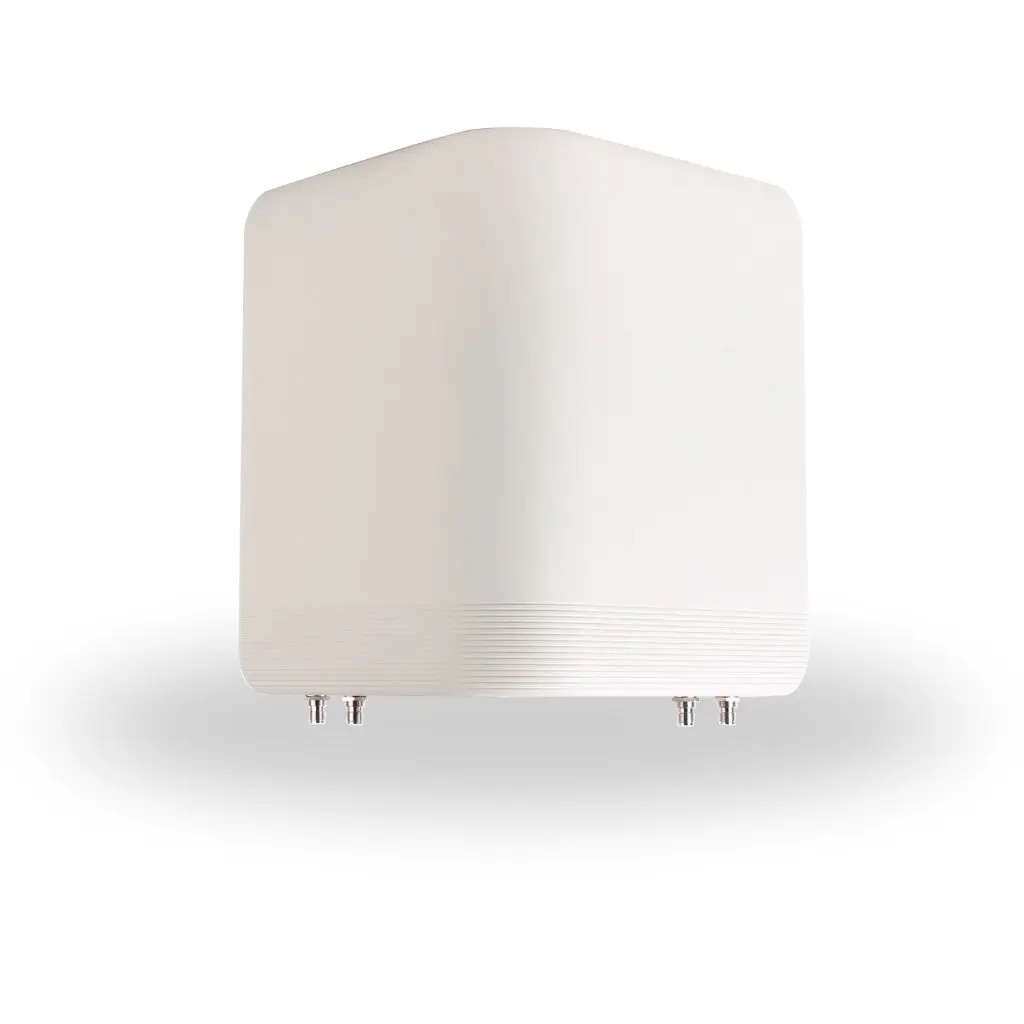

MultiSector Integrated

Dual-Carrier PtMP BS | Integrated | 4.9 GHz – 6 GHz

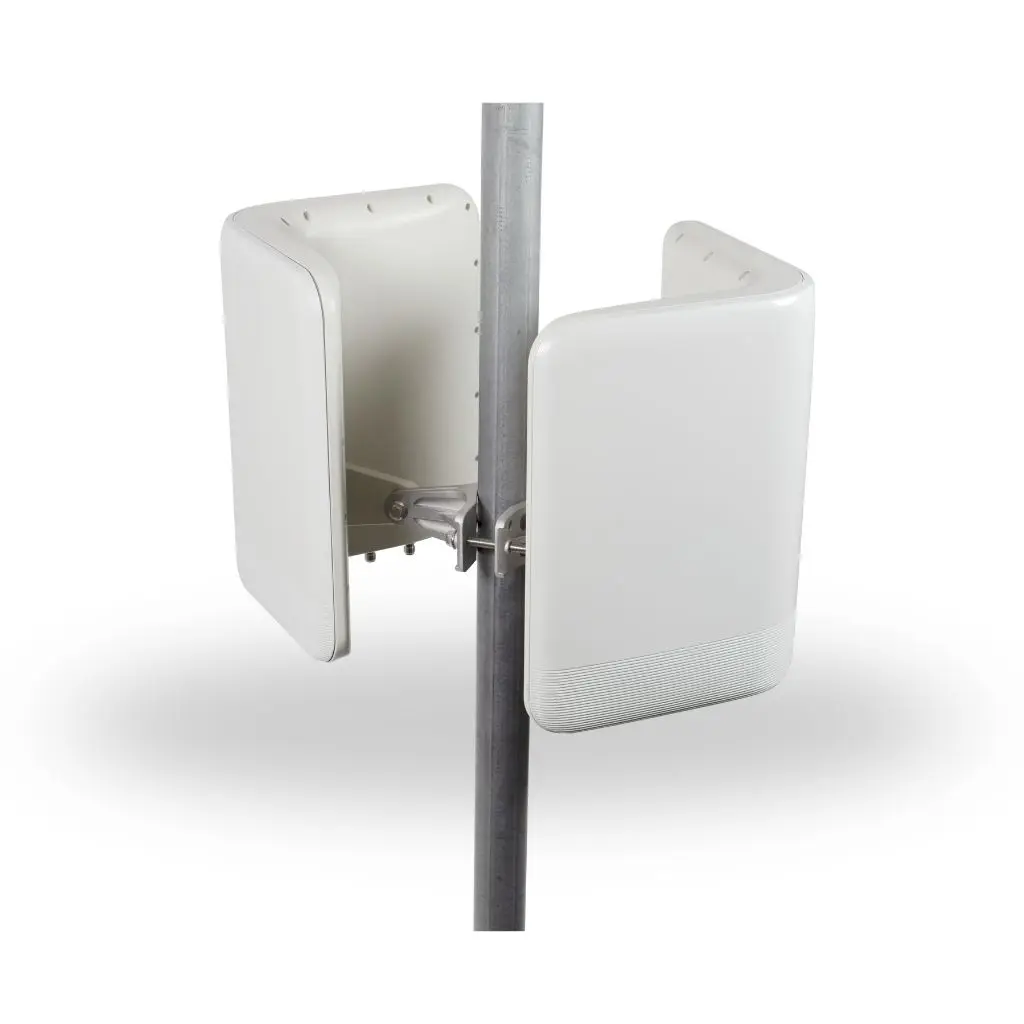

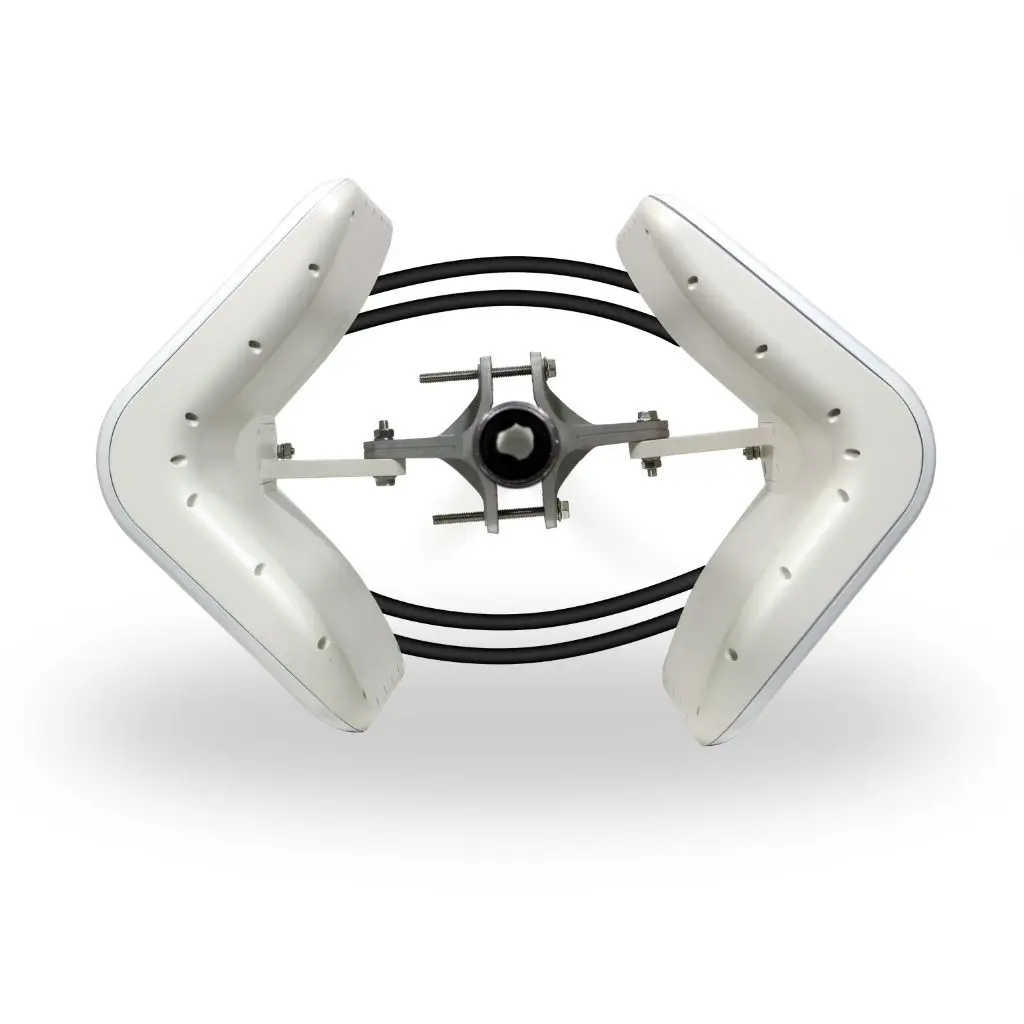

RADWIN MultiSector Integrated is a compact, site-in-a-box base station solution with dual integrated 90° antennas and support for an additional dual 90° external antenna. Delivering up to 1.5 Gbps, it enables seamless 360° coverage and is ideal for MicroPoP deployments in short-range rural and industrial environments.

Designed for applications such as village broadband, remote automation, and surveillance, MultiSector Integrated simplifies infrastructure by integrating radios, antennas, GPS sync, and switching, all within a single unit.

Product Highlights

Dual-carrier base station with up to 2 × 750Mbps
Operates in the 4.9 GHz – 6 GHz band
Built-in GPS for TDD sync and integrated switch
Dual 90° integrated antennas
2 x MIMO TNC connectors for external antenna
SLA and best-effort service level support
Supports 16 or up to 128 Subscriber Units

Add-On Antenna Unit

Operates in the 4.9 GHz – 6 GHz band
2 x MIMO TNC connectors for dual 90° extension

Download Product Brochure

Variants:

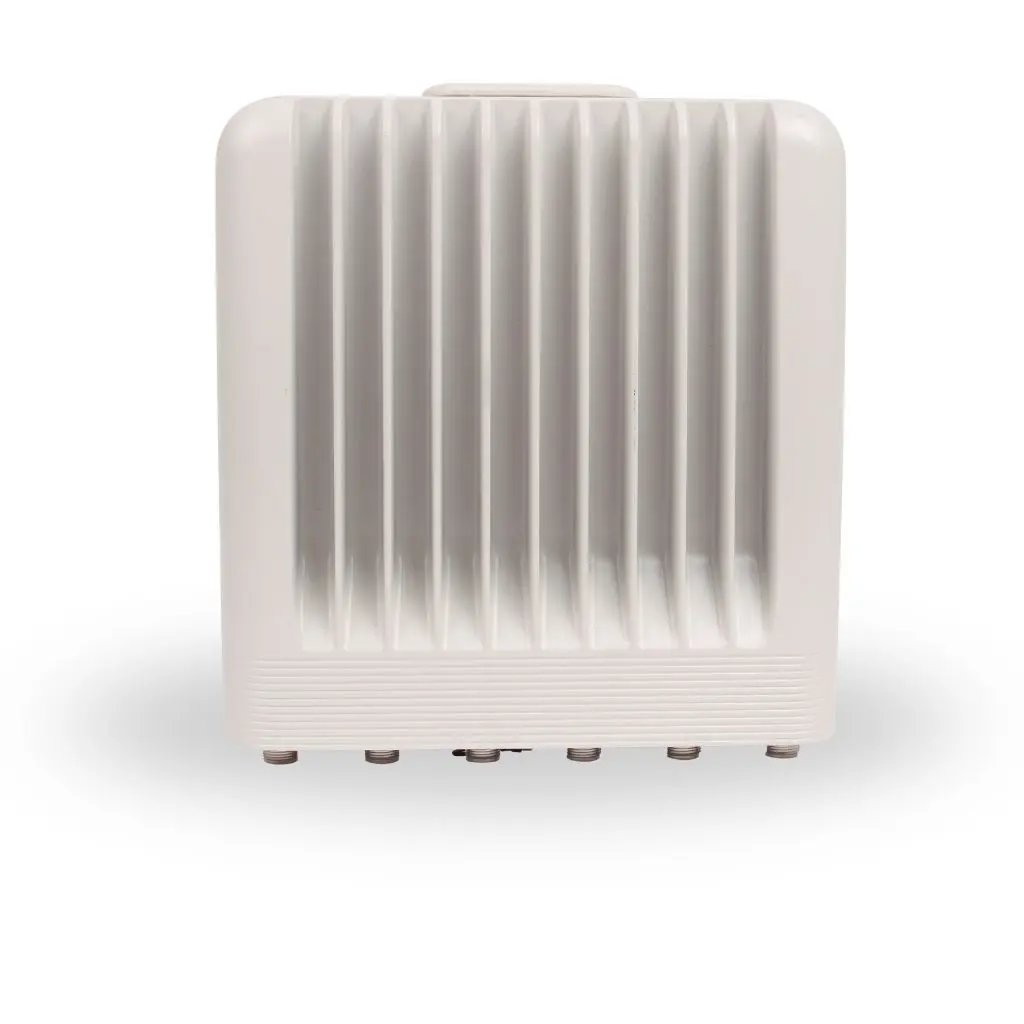

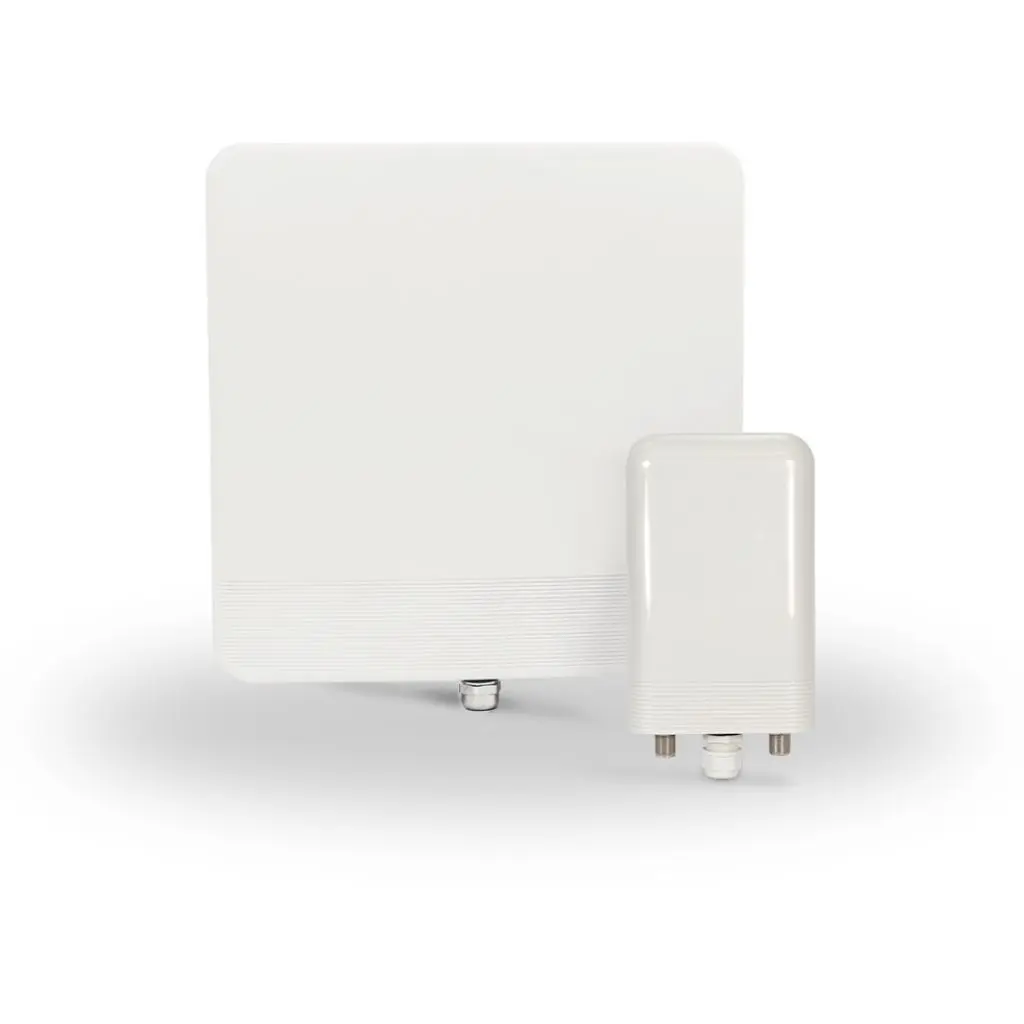

MultiSector Connectorized RADWIN 5000L

Main values

Robust performance with high interference immunity

Achieves full 360° coverage with sector topology, offering stronger interference mitigation than traditional Omni solutions.

Reduced site complexity and lower TCO

Combines radios, antennas, GPS, a switch, and power into one unit—reducing cables, devices, and installation costs.

Flexible architecture with optional expansion

Start with 180° coverage and easily scale to 360° using RADWIN or third-party antennas. Optional self-backhaul eliminates the need for a separate PtP unit.
