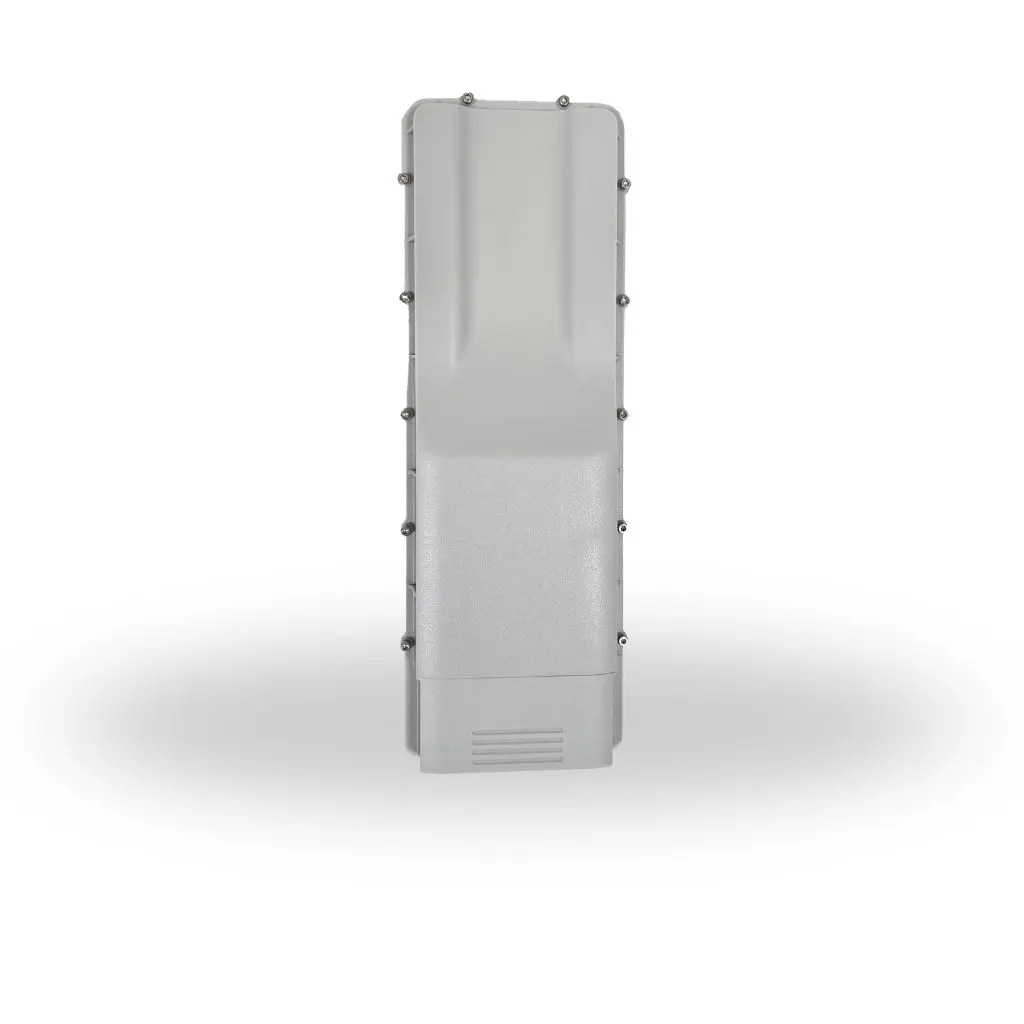

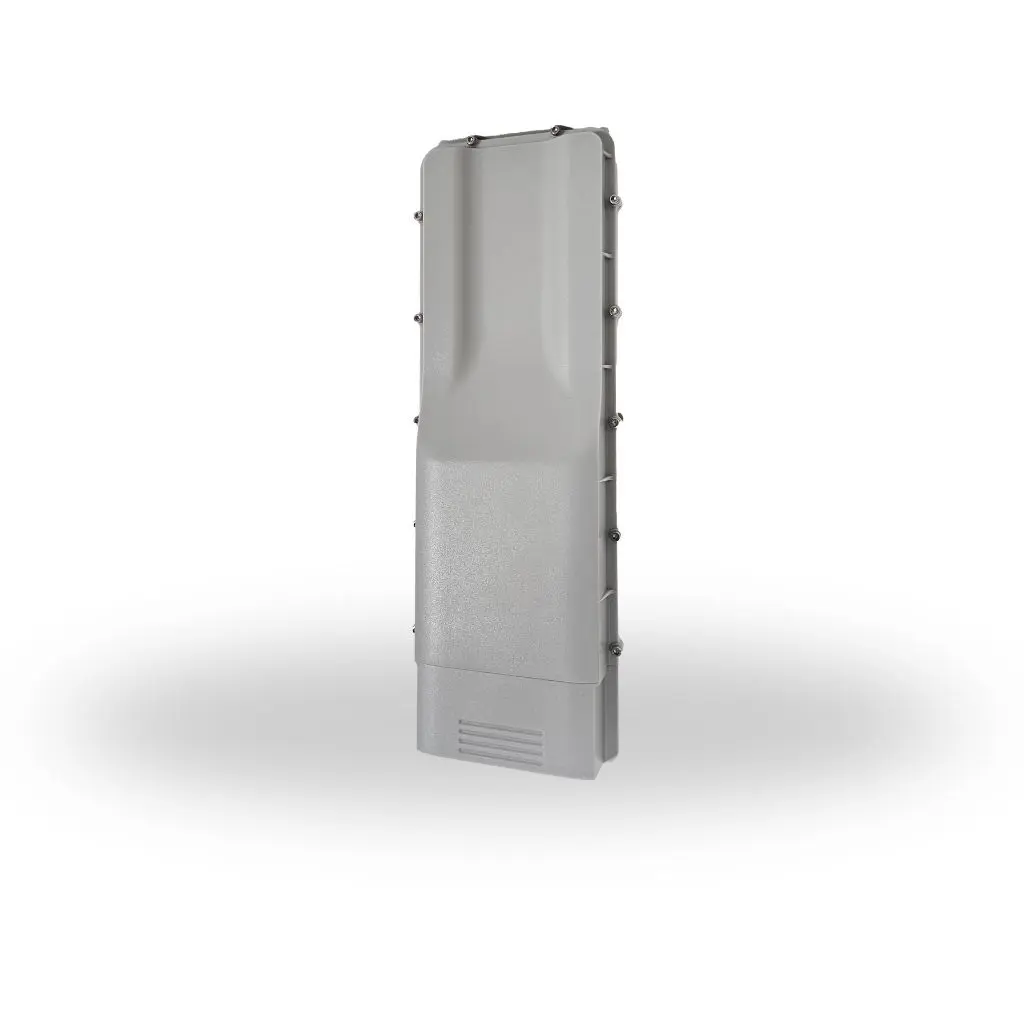

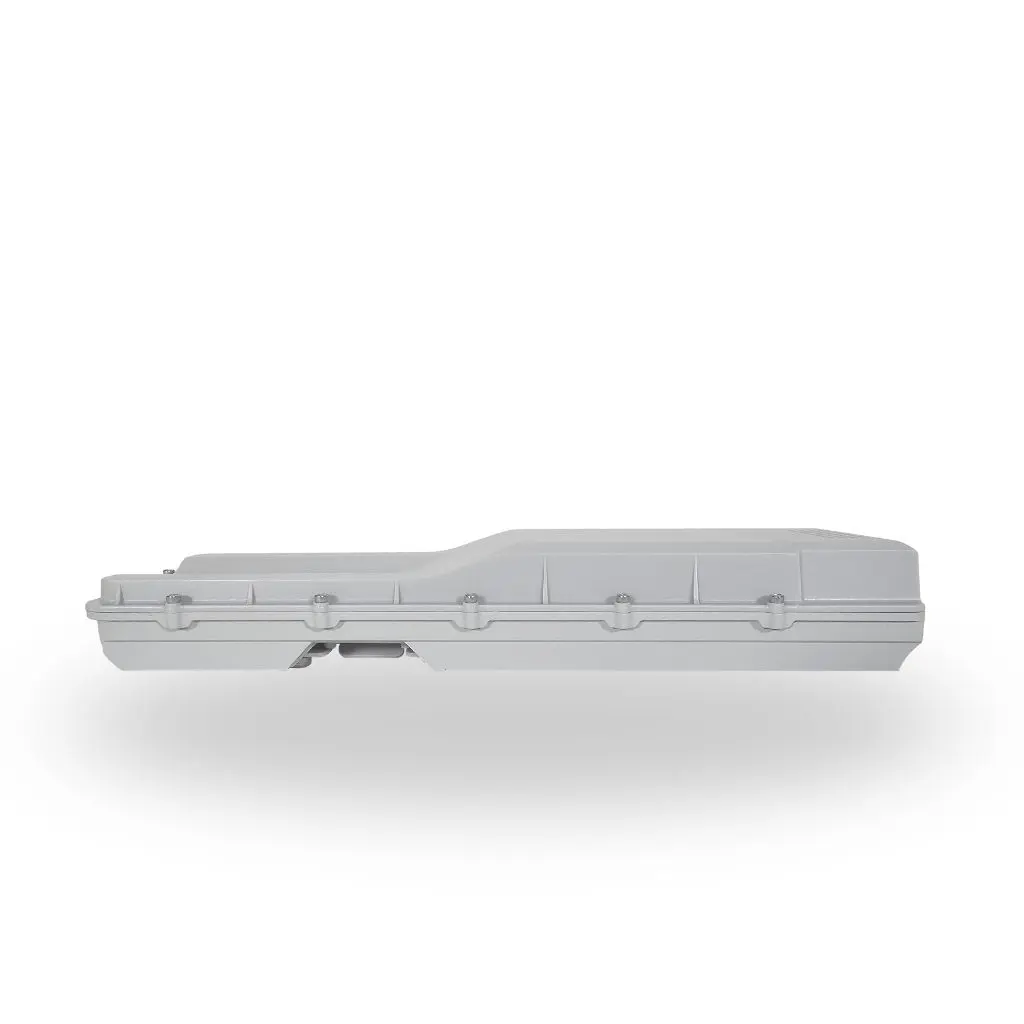

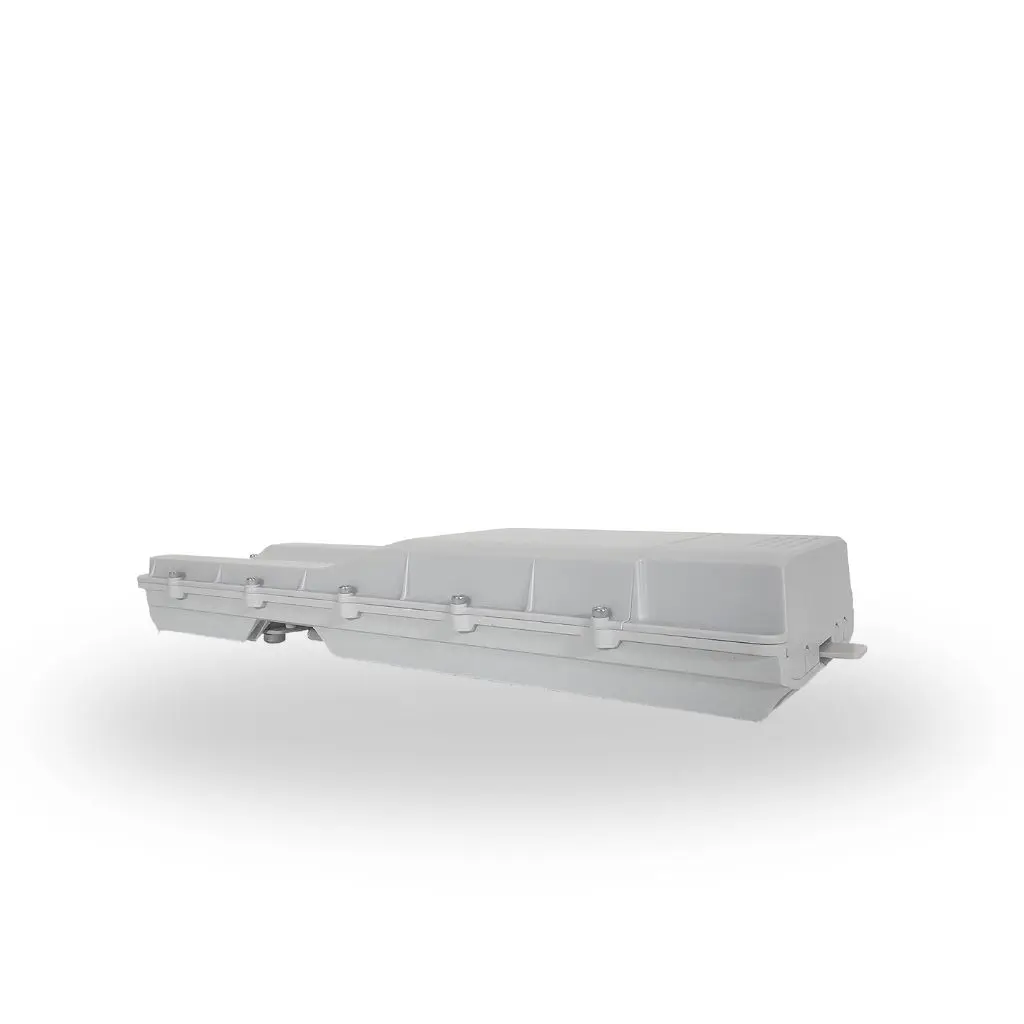

TerraNet V40
RADWIN TerraNet V40 is a compact and versatile 60 GHz mmWave radio designed for both Point-to-Multipoint (PtMP) and Point-to-Point (PtP) applications. With an integrated 40° beamforming antenna and automatic alignment, it delivers fiber-like speeds and reliability in short-range urban and industrial environments.
Delivering up to 2.3 Gbps and operating in the unlicensed 60 GHz band, TerraNet V40 is ideal for MicroPoP sites, public Wi-Fi backhaul, video surveillance, and smart city or industrial automation.
- Supports both PtMP and PtP configurations
- Up to 2.3 Gbps net aggregate capacity
- Integrated 40° beamforming antenna
- Operates in 60 GHz full band: 57–71 GHz
- Automatic antenna alignment
- Supports up to 32 Subscriber Units in PtMP mode
- AES+GCMP 128-bit encryption
- Dynamic TDD and DL/UL traffic shaping

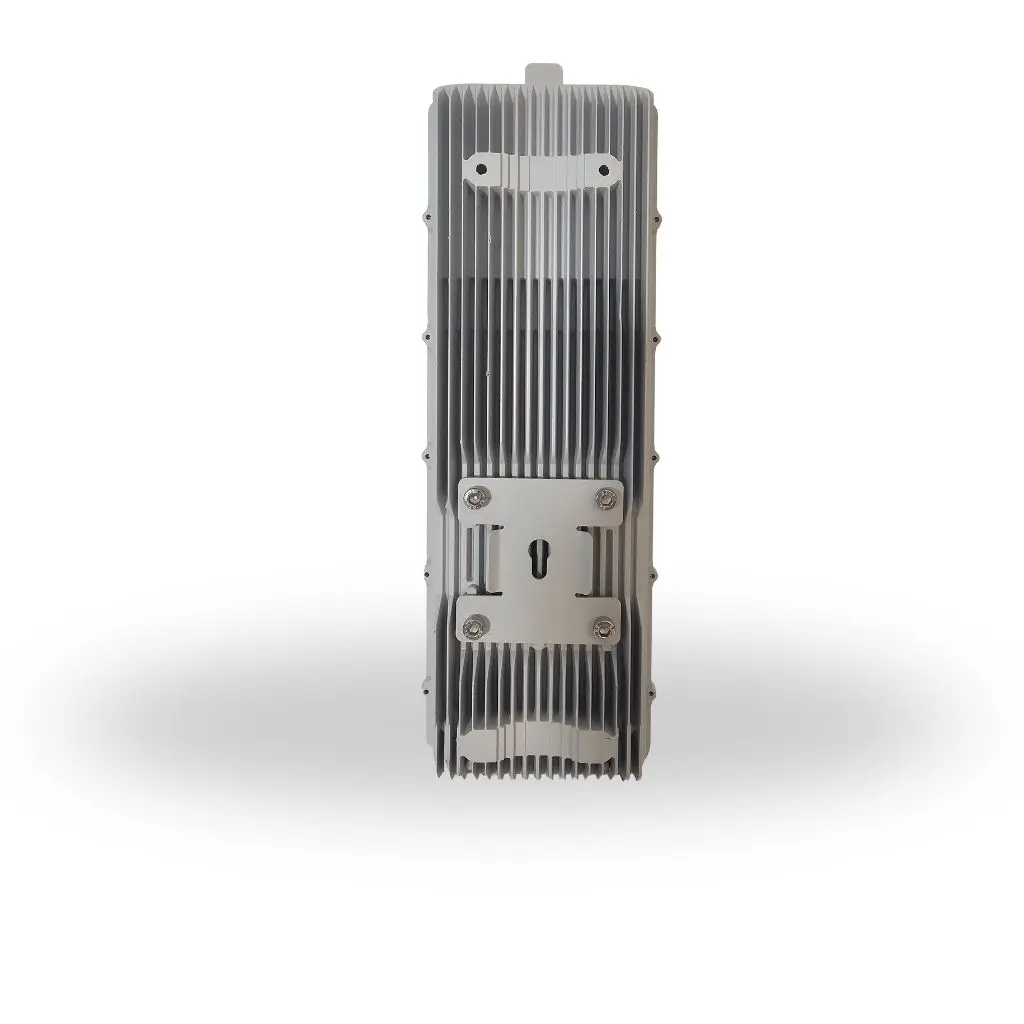

- Compact and IP56-rated enclosure
- 2.5G RJ45 (PoE in), 1G RJ45 (PoE out) interface
- Backup link supported via PoE out port
Main values
Compact, high-performance mmWave access
Supports both access and backhaul roles with 40° coverage, enabling multi-role flexibility in urban and industrial use cases.
Interference-resistant and spectrally efficient
Leverages 60GHz narrow beams and oxygen absorption for low-interference performance even in spectrum-congested areas.
Short-range fiber-like speeds, rapid deployment
Ideal for dense areas and short distances, delivering up to 2.3Gbps with minimal latency using automatic alignment and compact design.
Reliable connectivity, simplified installation
The IP56-rated enclosure, PoE support, and plug-and-play setup make it a reliable, easy-to-install choice for challenging environments.
