TerraNet V90

Compact mmWave Radio | PtMP & PtP | 60 GHz (57 GHz – 71GHz)

RADWIN TerraNet V90 is a modular 60 GHz mmWave radio purpose-built for flexibility. Designed to serve both Point-to-Multipoint (PtMP) and long-range Point-to-Point (PtP) applications, the V90 supports swappable antenna lens kits that adapt beamwidths from ultra-wide 90° to ultra-narrow 4°.

With up to 2.3 Gbps of net aggregate throughput and automatic beam alignment, TerraNet V90 enables high-performance wireless connectivity across urban, suburban, or industrial environments, whether for broadband access, backhaul, or smart infrastructure.


Product Highlights
  • Modular radio supporting PtMP and PtP configurations
  • Operates in 60 GHz full band: 57–71 GHz

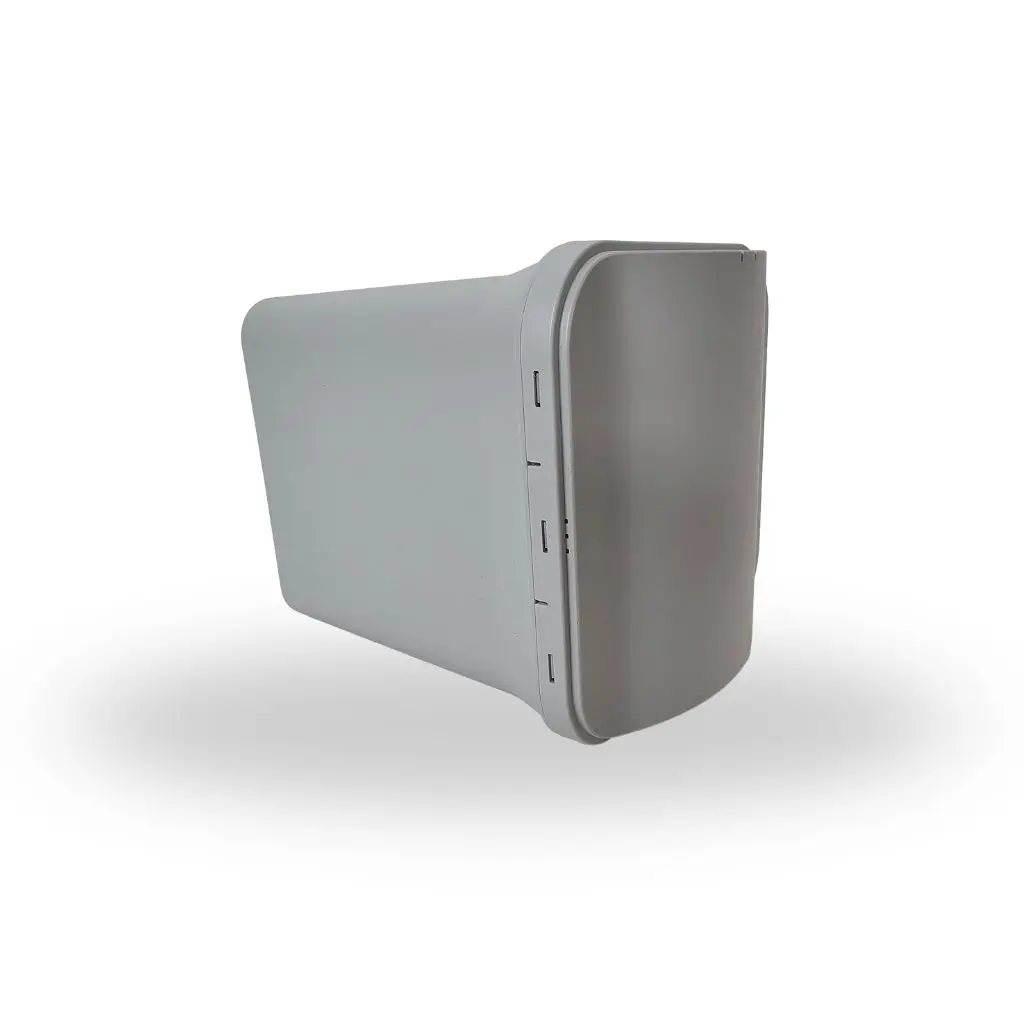

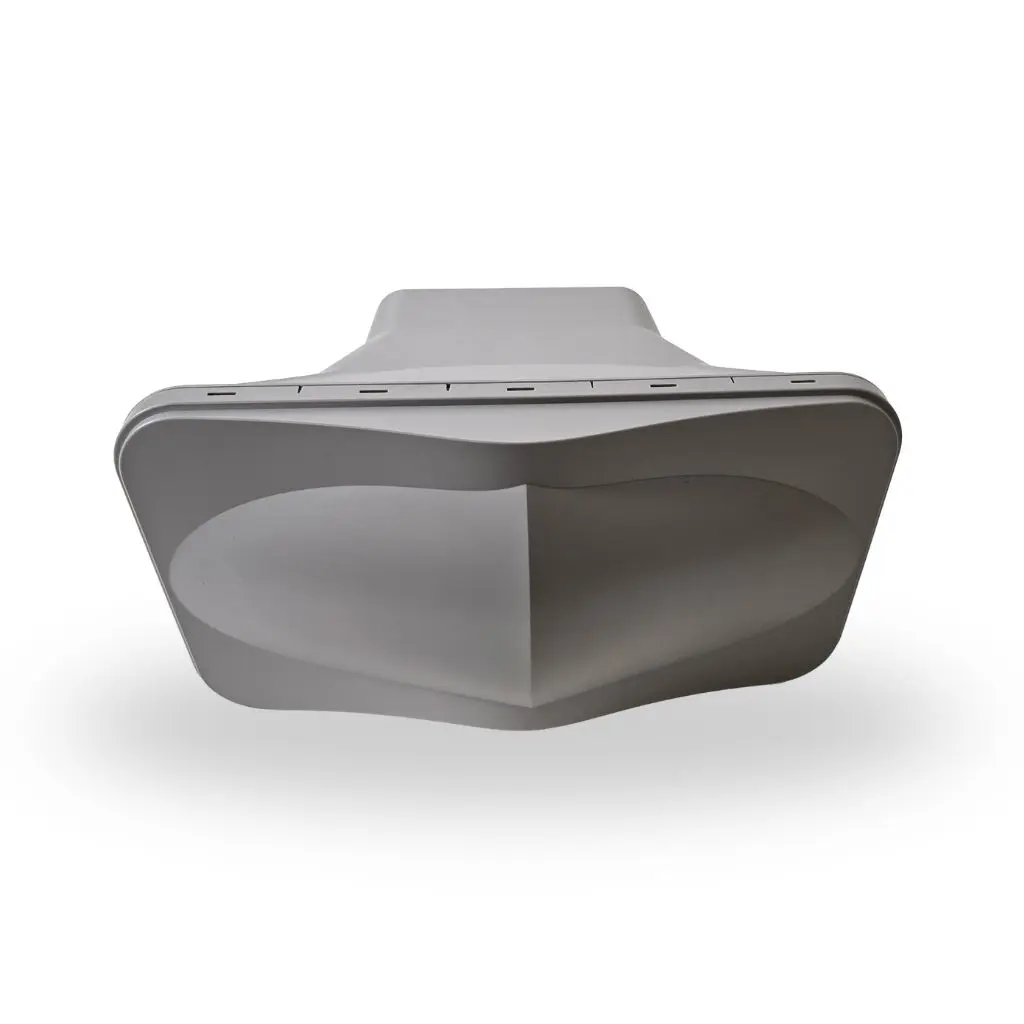

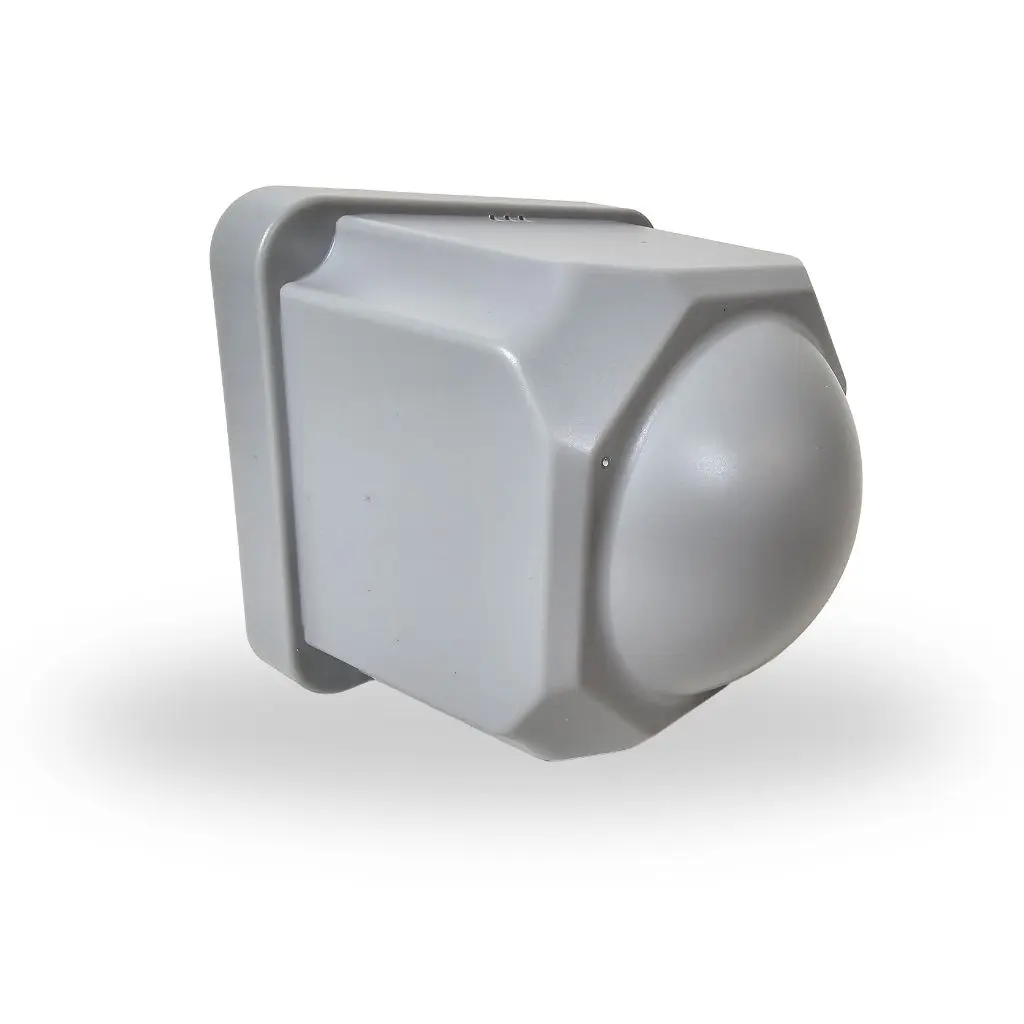

  • Swappable lens kits: 90°, 45°, 6°, 4° beamwidths
  • Up to 2.3 Gbps net aggregate capacity
  • Integrated beamforming antenna with auto-alignment
  • Supports up to 32 Subscriber Units in PtMP mode
  • Range up to 4 km (depending on antenna lens)
  • AES+GCMP 128-bit encryption
  • Dynamic TDD and advanced QoS features
  • IP67-compliant enclosure for harsh environments
  • 2.5G RJ45 (PoE in), 1G RJ45 (PoE out) interface
  • Backup link support via PoE out port


Variants:
$ 0.00 $ 0.00

Add to cart
Contact Us

Main values

Modular design for maximum deployment flexibility

Use the same radio for wide PtMP access or ultra-narrow, long-distance PtP backhaul by simply swapping lens kits.

Long-range and precision coverage

With support for beamwidths down to 4°, TerraNet V90 reaches distances of up to 4 km, ideal for complex topologies and industrial zones.

Powerful performance in a compact form

Delivering up to 2.3 Gbps with low latency and dynamic TDD, the V90 meets the demands of high-throughput, time-sensitive networks.

Rugged and future-ready

IP67 ready, full-band support (CH1–CH6), and automatic alignment make the V90 resilient and easy to deploy in any environment.
